Floor Stand LED Surgical Light

Floor Stand LED Surgical Light

Haolang Lighting provides floor stand LED surgical lights with adjustable heights and rotation angle, ensuring operating environments are not restricted and the light can be easily used. The floor stand LED surgical light is also equipped with brake casters to ensure a safe usage, and makes it ideal for use as a dental, gynecological, dermatological, stomatology, medical cosmetic and pet outpatient examination and small-scale surgery lighting. Haolang Lighting can also customize AC/DC dual-purpose power supply (DC is used as rechargeable power supply) according to customer requirements, which can ensure the normal use in the event of a power outage or poor power supply conditions. Shown here are a few floor stand LED surgical lights we’ve made:

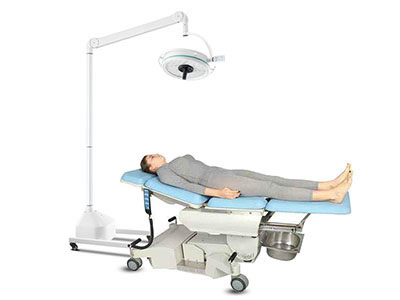

Some floor stand LED surgical light examples

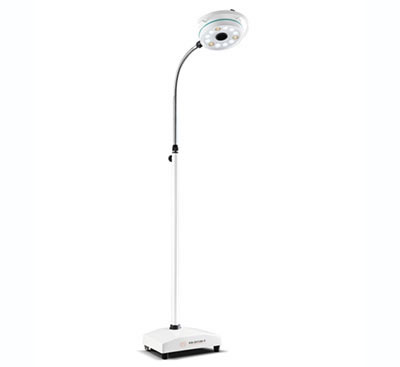

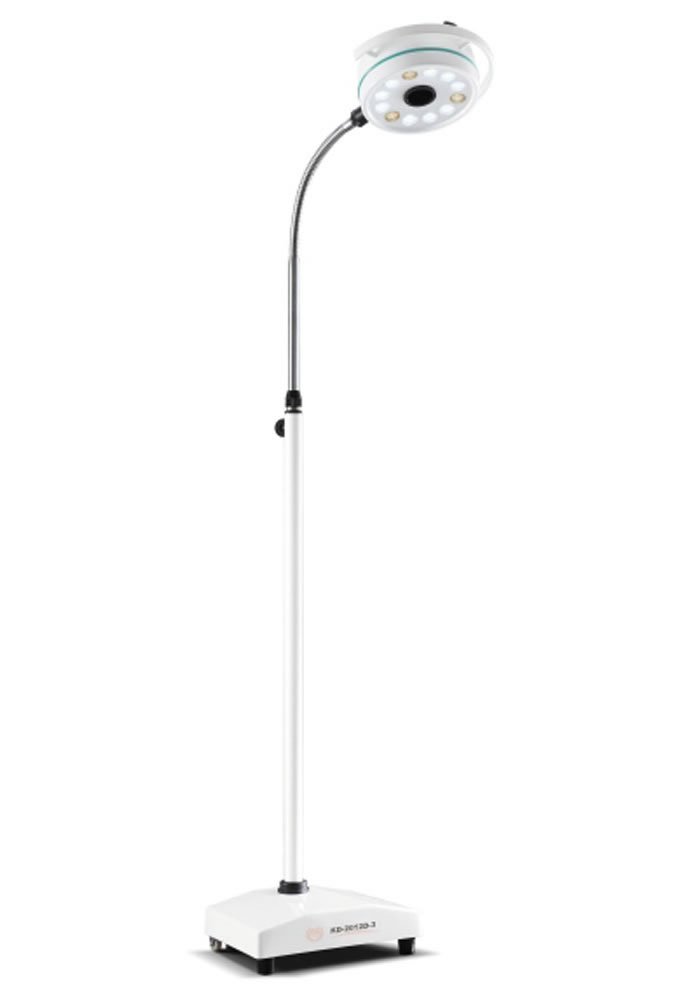

SL-201 12-LED Floor Stand LED Surgical Light
Parameters
  • Input power:90V-240V/AC 50HZ-60HZ
  • Lamp power:LED 12 x 3 W
  • Lamp life:50000 H
  • Lamp panel diameter:Ø200 mm
  • Color temperature:5500/4500 K (optional)
  • CRI > 90
  • Center illumination:45000 Lux
  • Working distance:700 mm
  • DC power supply time: 7 H
  • Net weight:8（AC）/ 14(DC) kg
  • Gross weight:11 / 17 kg
  • Packing size:104 x 33.5 x 23 cm
Floor Stand LED Surgical Light

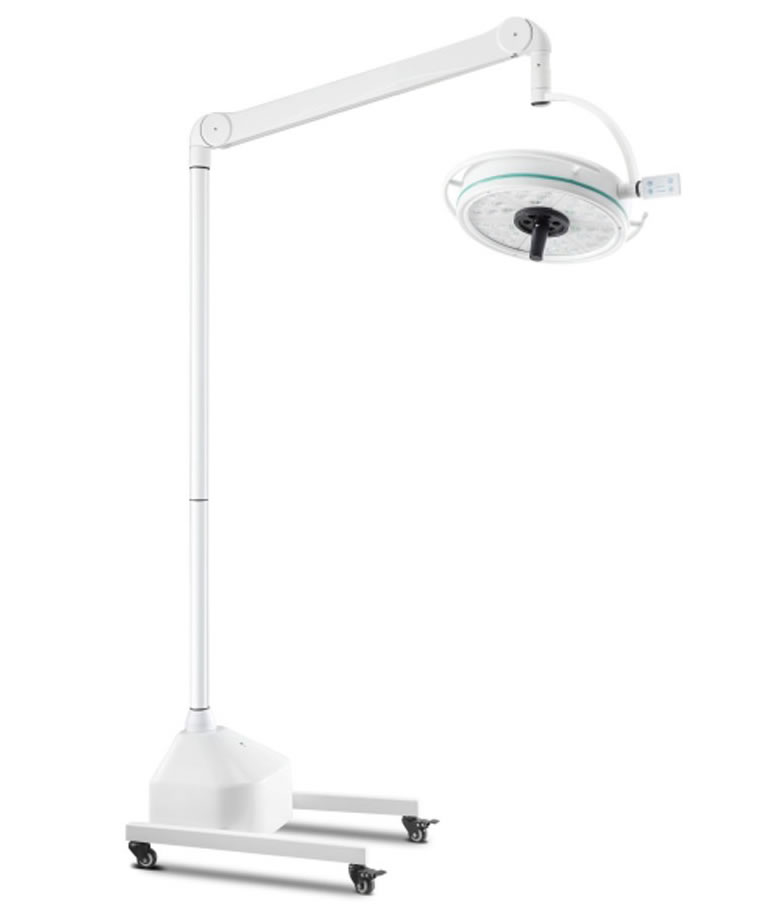

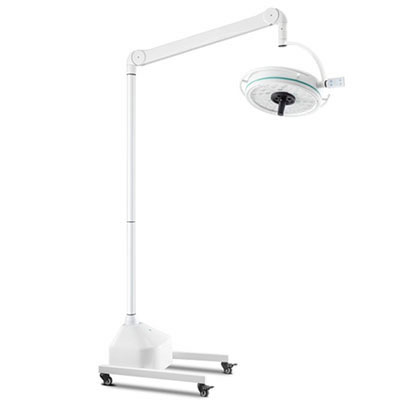

SL-204A/B 36-LED Floor Stand LED Surgical Light
Parameters
  • Input Voltage:90V-240V/AC 50HZ-60HZ
  • Input power:≤120VA
  • Lamp power:LED 36 x 3W
  • Lamp life:50000 H
  • Lamp panel diameter:Ø500 mm
  • Color temperature:5500/4500 K (optional)
  • CRI > 90
  • Center illumination:80000 Lux
  • Working distance:1000 mm
  • Spot diameter:120 - 240 mm
  • Lighting depth:200 mm
  • DC power supply time: 8 H
  • Net weight:32（AC）/ 39(DC) kg
  • Gross weight:37 / 44 kg
  • Packing size:114 x 62.5 x 31.6 cm
Floor Stand LED Surgical Light

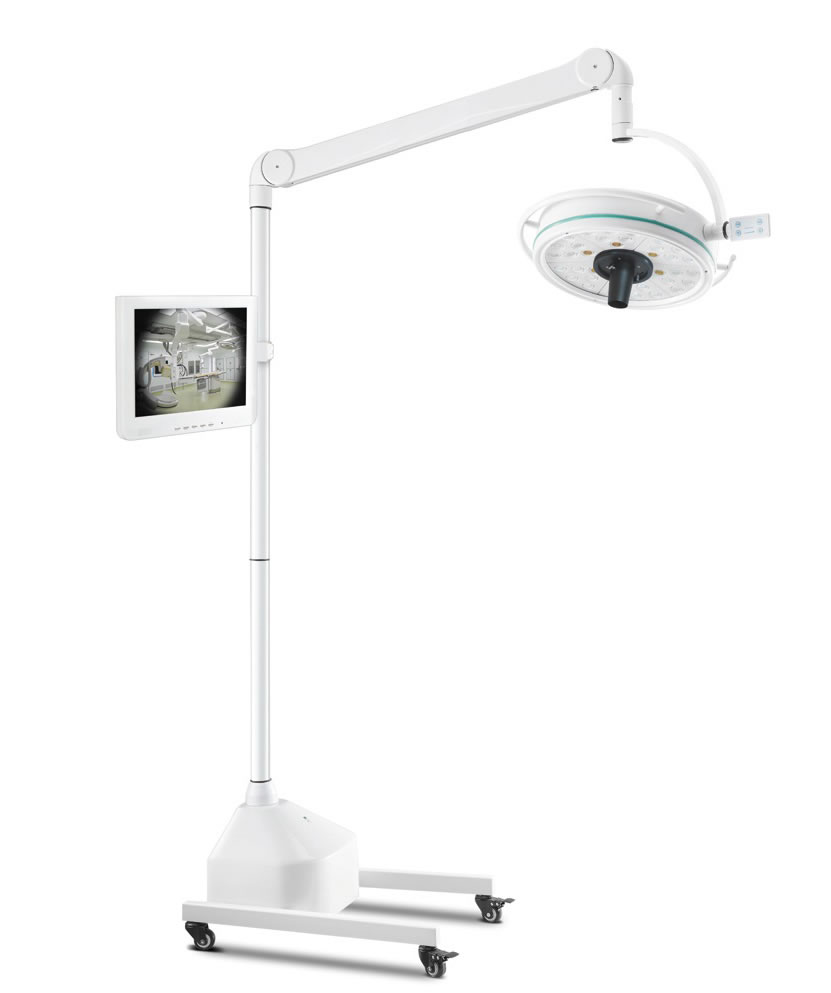

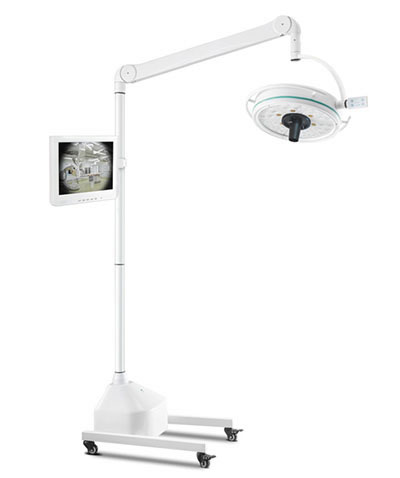

SL-004C 36-LED Floor Stand LED Surgical Light
Parameters of the installed visual system
  • CDD type: SONY-960H
  • Voltage: DC12V±5%
  • Operating temperature: -20℃ -- 60℃
  • Operating humidity: 0 - 96%
  • Size: 18 mm x 46 mm
  • Total pixels: PAL: 1020H×596V
  • Signal format: PAL/NTSC
  • Resolution (Horizontal Center): 700 TVL
  • OSD menu: Support
  • Minimum illumination: 0.01LUX/F1.2
  • SNR(Signal to Noise Ratio): ≥48dB
  • Video output: 1.0Vp-p/75Ω
  • Automatic gain control: 0.25/0.50/0.75/1.00 four levels can be adjusted up to 55dB
  • White Balance: Open/Close Options
  • Electronic shutter: 1/50(1/60) - 1/100000 second
  • Gamma correction: 0.45/1.0
  • Synchronization mode: internal synchronization
  • Audio: optional
Floor Stand LED Surgical Light

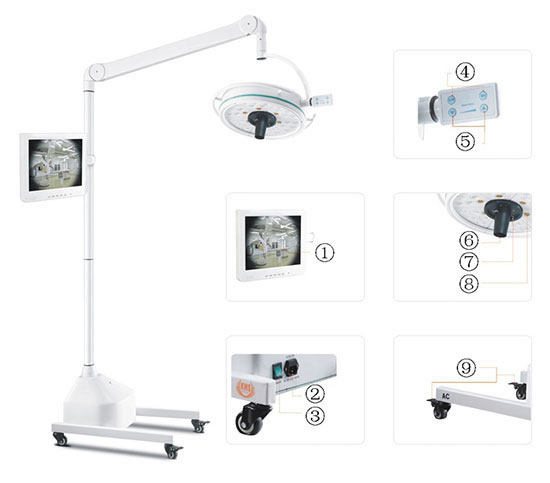

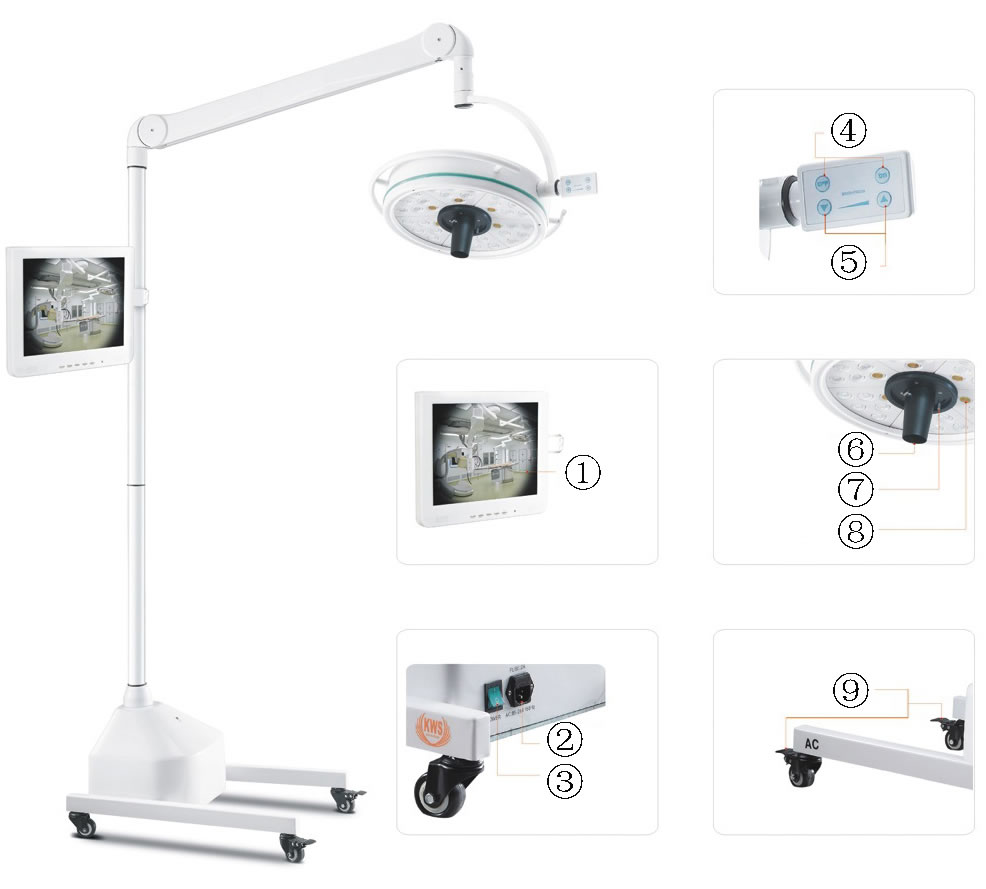

Configuration and instructions
Floor Stand LED Surgical Light

① Display screen
② Power socket
③ Power switch
④ Power switch
⑤ Brightness adjustment
⑥ Camera
⑦ Focus adjustment
⑧ Warm lamp
⑨ Brake caster
