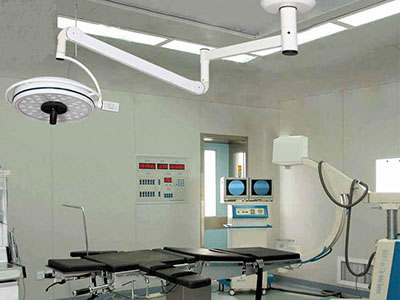

Ceiling Mount LED Surgical Light
Haolang Lighting offers ceiling mount LED surgical lights with a universal arm that can rotate in 360°. It can be installed at the ceiling, and occupies very little space, making it ideal for use in dental, gynecological, dermatological, medical cosmetic and pet clinic examination and operation room lighting.
The brightness of the ceiling mounted LED surgical light is adjustable without affecting the color temperature. The illumination of the highest center reaches 16000 Lux.
Taking into consideration the different power supply requirements in different countries, our products feature a wide voltage range.
Some LED surgical light examples

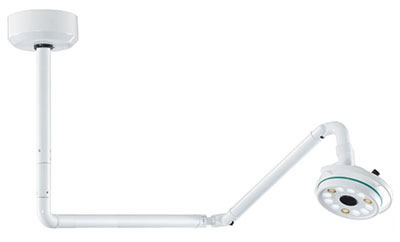

SL-202 12-LED Ceiling Mount LED Surgical Light
- LED quantity: 12
- Input voltage: 90V-240V/AC 50HZ-60HZ
- Lamp power: LED 12 x 3 W
- Lamp life: 50000 H
- Lamp panel diameter: Ø200 mm
- Color temperature (optional):5500/4500 K
- CRI :> 80
- Center illumination: 45000 Lux
- Installation height: 2800-3200 mm
- Working distance: 700 mm
- The length of the middle column is optional: （800/1000/1200mm）
- Maximum rotation radius: 1115 mm
- Spot diameter: 120 - 240 mm
- Lighting depth: 200 mm
- Net weight: 12 kg
- Gross weight: 15 kg
- Packing size: 98 x 44 x 17 cm

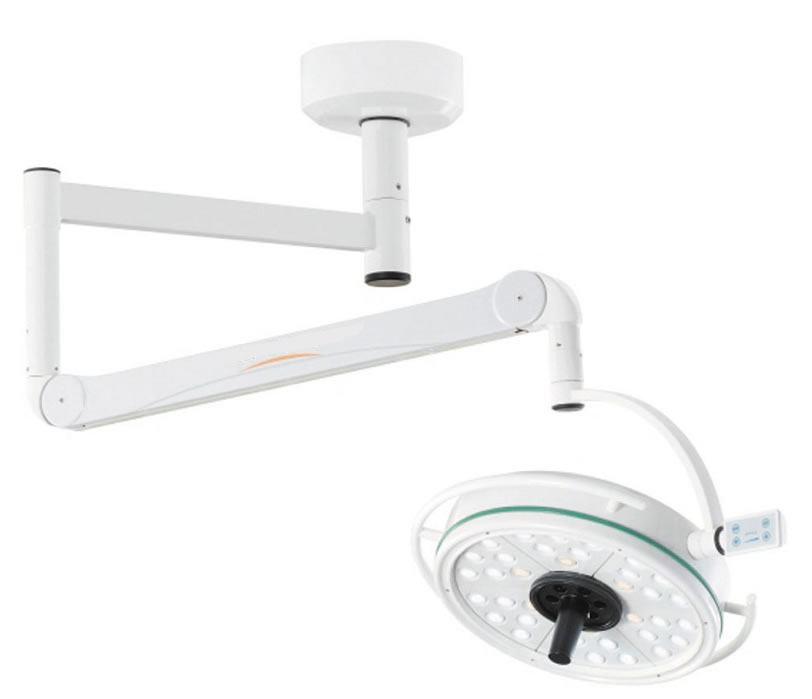

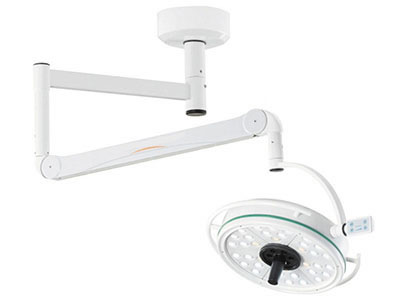

SL-205 36-LED Ceiling Mount LED Surgical Light
- LED quantity: 36
- Input voltage: 90V-240V/AC 50HZ-60HZ
- Input power: ≤120VA
- Lamp power: LED 36 x 3W
- Lamp life: 50000 H
- Lamp panel diameter: Ø500 mm
- Color temperature (optional):5500/4500 K
- CRI :> 80
- Center illumination: 80000 Lux
- Installation height: 2800-3200 mm
- Working distance: 1000 mm
- The length of the middle column is optional: （800/1000/1200mm）
- Spot diameter: 120 - 240 mm
- Lighting depth: 200 mm
- Net weight: 35 g
- Gross weight: 40 kg
- Packing size: 106 x 60 x 39 cm

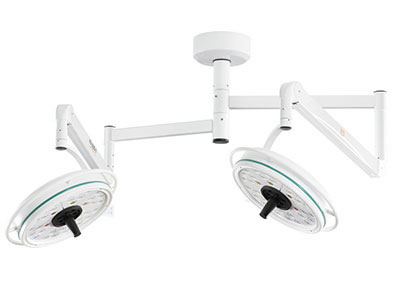

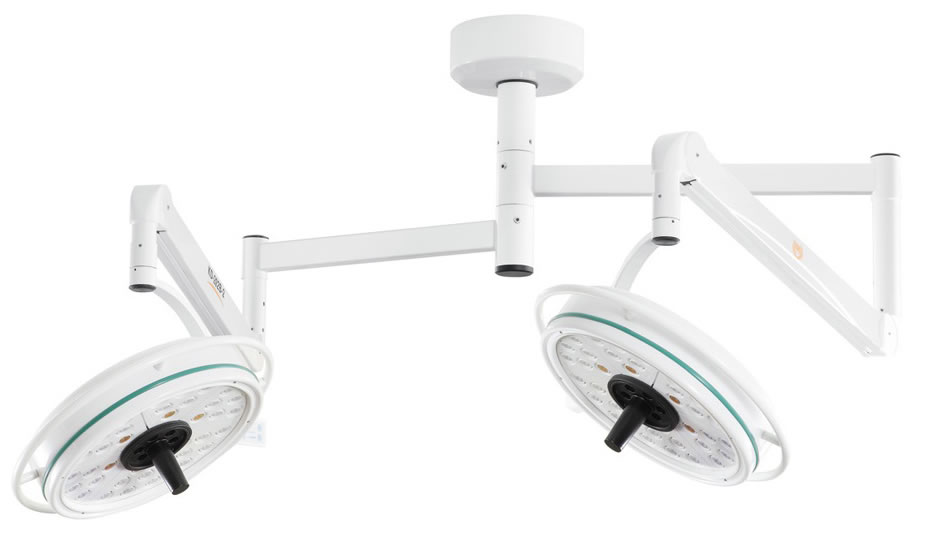

SL-207 72-LED Ceiling Mount LED Surgical Light
- LED quantity: 72
- Input voltage: 90V-240V/AC 50HZ-60HZ
- Input power: ≤120VA x 2
- Lamp power: LED 36 x 2 x 3W
- Lamp life: 50000 H
- Lamp panel diameter: Ø500 mm
- Color temperature (optional):5500/4500 K
- CRI > 90
- Center illumination: 160000 Lux
- Installation height: 2800-3200 mm
- Working distance: 1000 mm
- The length of the middle column is optional: （800/1000/1200mm）
- Maximum wingspan: 1800 mm
- Spot diameter: 120 - 240 mm
- Lighting depth: 200 mm
- Net weight: 54 g
- Gross weight: 62 kg
- Packing size: 107 x 64 x 42 cm

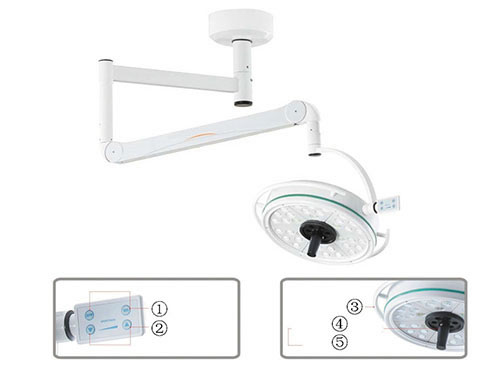

Configuration and instructions
① Click switch
② Brightness adjustment
③ Handle of light pot
④ Condensing adjustment
⑤ Sterilizable center handle

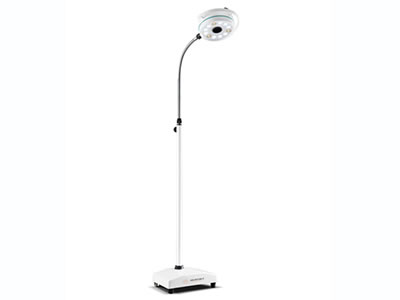

Other Products
