Medical Halogen Light Source

Medical halogen light sources can adapt to a wide range of voltages. When the network voltage fluctuates, the output voltage of this product can remain constant, to ensure the lamp life and the stable output parameters of the light.

This series of halogen light source has a strong anti-jamming capability and overcomes the shortcomings produced by silicon controlled circuit, electronic transformer and inductance transformer to power grid and other sensitive equipment. This medical halogen light source will neither be interfered by other equipment nor interfere with other equipment. And it is suitable for endoscopy examination and surgical lighting in neurosurgery, general surgery, ophthalmology, otolaryngology, gynecology, anorectology, etc.

Besides, this series of cold light source can be used with loupes. We also provide customers with a variety of standard interfaces: Wolf, Storz, Olympus, etc., and customers can also specify interfaces.

Optional Models

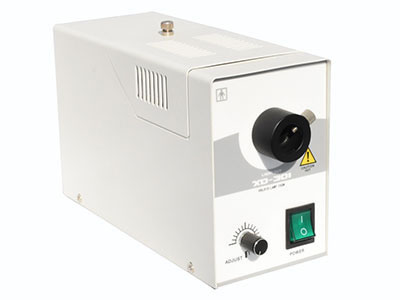

150W Portable Cold Light Source

The cold light source is portable and easy to carry. It is very suitable for doctors’ inspection and outdoor rescue.

Parameters
  • Model:CL-001-150W(A)
  • Input voltage: 90V-250V/AC 50HZ-60HZ
  • Lamp power: 150 W
  • Lamp voltage: 24 V
  • Lamp life: 200H
  • Illumination: 1.6 x 106 Lux
  • Color temperature: 3600 K
  • Net weight: 1.75 kg
  • Gross weight: 2.75 kg
  • External dimension: 19 x 20 x 13 cm
  • Packing size: 24 x 16 x 15 cm
Medical Halogen Light Source

150W Halogen Cold Light Source

The single-hole halogen cold light source is compact in size, with a net weight of 1.75KG and exhaust capacity of 0.4L/min. It is very suitable for doctor inspection and outdoor rescue.

Parameters
  • Input voltage: 90V-250V/AC 50HZ-60HZ
  • Lamp power:150 W
  • Lamp voltage:24 V
  • Lamp life:200H
  • Illumination:1.6 x 106 Lux
  • Color temperature:3600 K
  • Net weight:1.75 kg
  • Gross weight:2.75 kg
  • External dimension:15 x 8 x 14 cm
  • Packing size:24 x 16 x 15 cm
Medical Halogen Light Source

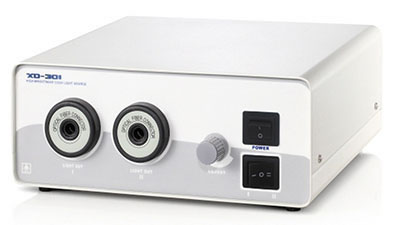

150W or 250W Halogen Cold Light Source

This 150W or 250W halogen cold light source is designed with double-hole type, which can be used with headlamp, and can be used for operation and examination in various departments.

Parameters
  • Model: CL-002-150/250W
  • Input voltage: 90V-250V/AC 50HZ-60HZ
  • Lamp power: 150W or 250 W
  • Lamp voltage: 24 V
  • Lamp life:100H
  • Illumination: 1.6 x 106 Lux or 2.5 x 106 Lux
  • Color temperature: 3600 K
  • Net weight: 6.5 kg
  • Gross weight:7.5 kg
  • External dimension:31 x 29 x 12 cm
  • Packing size:40 x 39 x 22 cm
Medical Halogen Light Source

150W Cold Light Source for Rigid Endoscope

The cold light source for rigid endoscope is equipped with an air pump. The operator can inflate the stomach through the gastroscope.

Parameters
  • Model: CL-003-150W
  • Input voltage: 90V-250V/AC 50HZ-60HZ
  • Lamp power: 150 W
  • Lamp voltage: 24 V
  • Lamp life:100H
  • Illumination:1.6 x 106 Lux
  • Color temperature: 3600 K
  • Net weight:7 kg
  • Gross weight:8 kg
  • External dimension:31 x 29 x 12 cm
  • Packing size:40 x 39 x 22 cm
Medical Halogen Light Source
