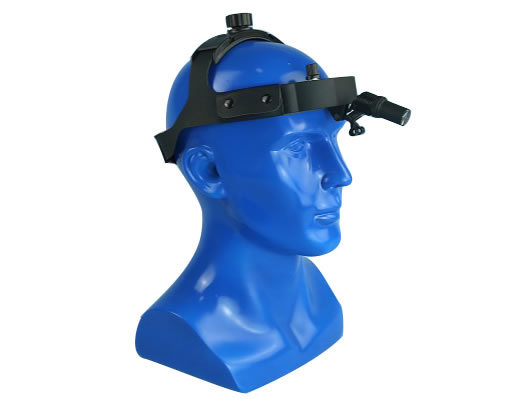

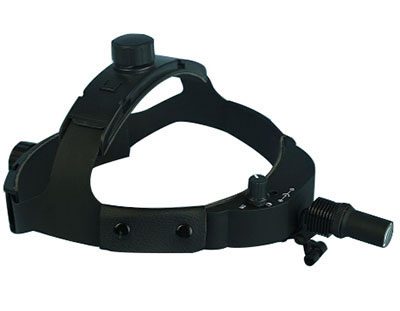

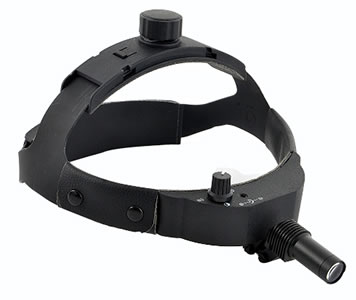

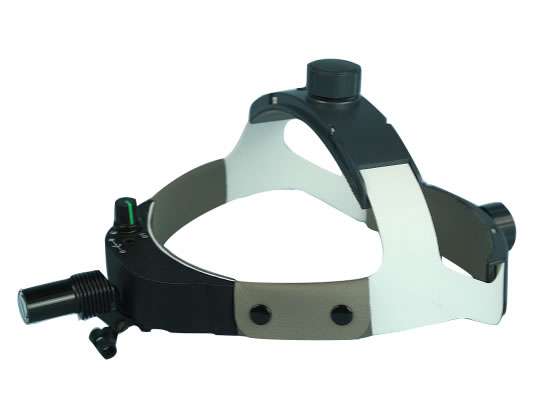

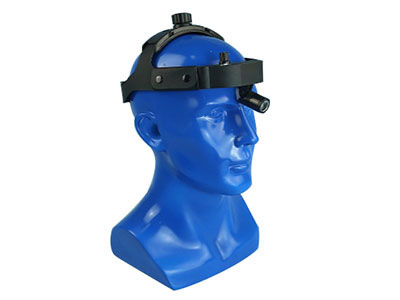

Surgical LED Headlight
This series of surgical LED headlights are designed with battery integrated into the headstraps. It is one of our battery-powered LED headlights, which ensures full flexibility and comfort during use.
Because the continuous illumination brightness is the core requirement of the operation lamp, our headlight has built-in intelligent constant current controller, and its brightness will not decrease with the dropping of the current or surgical operation lasting for a long time.
In order to ensure the comfort when using, the lampshade of our headlight is made of acrylic or aluminum alloy, which are both light. Even if it is worn for a long time, there will be no discomfort.
In addition, the illumination, spot size and illumination angle of this headlight can be adjusted freely, which is very suitable for overhaul, observation or surgery in different clinical departments, such as general surgery, otorhinolaryngology, dentistry, cosmetology and plastic surgery.
Some surgical LED headlight examples
HL-002 Surgical Headlight
- Lamp power: 3W
- Brightness: 10000 Lux
- Spot: non-adjustable
- Spot diameter: Φ90 - 270 mm
- Net weight: 200g
- Gross weight: 495g
- Packing size: 230*250*210 mm
- Charging input voltage: 90V-250V/AC 50HZ-60HZ
- Input power: ≤ 1.5 W
- Lamp life: 50000 H
- On-Off intensity control: Knob
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI>90
- DC power supply time: 4 H
- DC charging time: 2 H
HL-002A Surgical Headlight
- Lamp power: 3W
- Brightness: 40000 Lux
- Spot: non-adjustable
- Spot diameter: Φ70 - 270 mm
- Net weight: 200g
- Gross weight: 495g
- Packing size: 230*250*210 mm
- Charging input voltage: 90V-250V/AC 50HZ-60HZ
- Input power: ≤ 1.5 W
- Lamp life: 50000 H
- On-Off intensity control: Knob
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI:> 90
- DC power supply time: 4 H
- DC charging time: 2 H
HL-003 Surgical Headlight
- Lamp power: 3W
- Brightness: 15000Lux
- Spot: adjustable
- Spot diameter: Φ10 - 130 mm
- Net weight: 200g
- Gross weight: 495g
- Packing size: 230*250*210 mm
- Charging input voltage: 90V-250V/AC 50HZ-60HZ
- Input power: ≤ 1.5 W
- Lamp life: 50000 H
- On-Off intensity control: Knob
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI > 90
- DC power supply time: 4 H
- DC charging time: 2 H
HL-003A Surgical Headlight
- Lamp power: 3W
- Brightness: 40000 Lux
- Spot: non-adjustable
- Spot diameter：Φ60 - 190 mm
- Net weight：200g
- Gross weight: 495g
- Packing size: 230*250*210 mm
- Charging input voltage: 90V-250V/AC 50HZ-60HZ
- Input power: ≤ 1.5 W
- Lamp life: 50000 H
- On-Off intensity control: Knob
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI > 90
- DC power supply time: 4 H
- DC charging time: 2 H
HL-001 Surgical Headlight
- Charging input voltage: 90V-250V/AC 50HZ-60HZ
- Lamp power: 1 W
- Brightness: 20000 Lux
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI > 80
- Lamp life：50000H
- On-off intensity control: Knob
- DC power supply time：8H
- DC charging time：2H
- Net weight：200 g
- Gross weight：495 g
- Packing size: 230*250*210 mm
HL-001A Surgical Headlight
- Charging input voltage:90V-250V/AC 50HZ-60HZ
- Lamp power:3 W
- Brightness: 45000 Lux
- Color temperature (optional): 6000K±500K daylight color or 4500K±500K warm color
- CRI > 80
- Lamp life：50000H
- On-Off intensity control:Knob
- DC power supply time：4H
- DC charging time：2H
- Net weight：200 g
- Gross weight：495 g
- Packing size: 230*250*210 mm

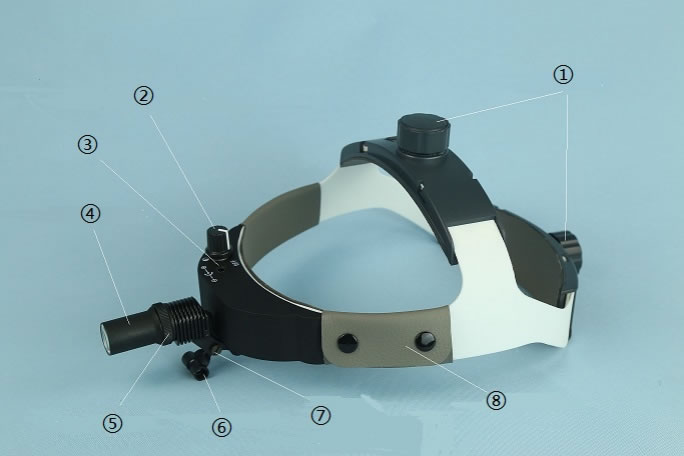

Configuration and instruction
① Elastic adjustment
② On-off intensity control knob
③ DC charging socket
④ Optical lamp
⑤ Spot adjustment
⑥ Loupe bracket
⑦ Loupe bracket (angles of lamp and loupe can be adjusted simultaneously)
⑧ Detachable and washable padding
Haolang Lighting is a manufacturer of surgical LED headlight. The above are some surgical LED headlight we have made. At the same time, we have other products that can be used in Otolaryngology:
